Step 1 / 7 : create a new C# project

Start VisualStudio .NET, click on New Project and choose Windows Application from the available C# projects.

Step 2 / 7 : add a reference

When the project is created, open the Solution window. Right-click on Reference, and select Add a reference.

Step 3 / 7 : bring xlsgen in

Click on the COM tab, look up component named : Excel Generator.ARsT design 2003. Double-click on it, and click ok.

At this point, the component need to be registered before it appears in the window. Installing the product automatically registers that component. Contact the technical support in case you don't know what to do with it.

Doing so, VisualStudio creates a file Interop.xlsgen.dll in your application directory known as a COM interop assembly which lets you use the application object model with any .NET language, including C#.

Step 4 / 7 : bring xlsgen in

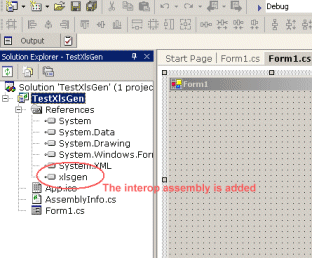

When VisualStudio completes the integration of the component, it appears right in the list of references with the following name : xlsgen.

Step 5 / 7 : add intellisense support

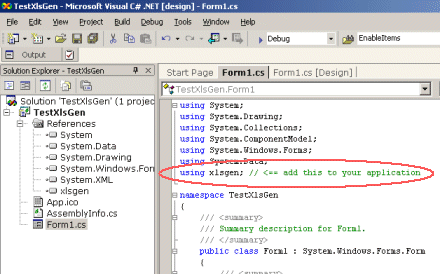

In order to access easier the component interfaces, it is recommended to add an appropriate namespace statement in your code :

Right-click in Form1 and select View code. In the source code, add the following statement near other using statements :

using xlsgen;

Step 6 / 7 : check intellisense support

Just type ix and hit Ctrl-Space, this should bring intellisense and show the component interfaces.

Step 7 / 7 : write some code

Paste the following code in Form1.cs, then build the solution and run it :

xlsgen.CoXlsEngine engine = new xlsgen.CoXlsEngine();
IXlsWorkbook wbk = engine.New( @"c:\myfirstfile.xls" );
IXlsWorksheet wksht = wbk.AddWorksheet( "samplesheet" );
wksht.set_Label(1,2, "Hello world!");
wbk.Close();

System.Diagnostics.Process.Start( @"c:\myfirstfile.xls" );

System.Runtime.InteropServices.Marshal.ReleaseComObject(engine);

What we basically do is create a component instance, name the Excel file we want to create, create a worksheet, add a simple Hello World! label, and close it. Excel is then automatically started, only to show the resulting Excel file.

That shows how simply it is to generate Excel files without ever relying on Excel itself.

watch the resulting Excel file

Plain and simple!

download the demo

The source code for that C# project is available here (26 kb). Unzip the file, and double-click on the .sln file.

Note that if you'd like to see a sample program which reads a .NET dataset and imports it into an Excel workbook using xlsgen code, you may want to take a look at sample called "dataset" available in the C# and VB.NET folders of the install.
